-- Open Frame Solenoid --
Item No/Type:RG-O-0415L
Name:Open Frame Solenoid

Description:




                              Plunger Weight: 0.6g / Total Weight: 5.4g

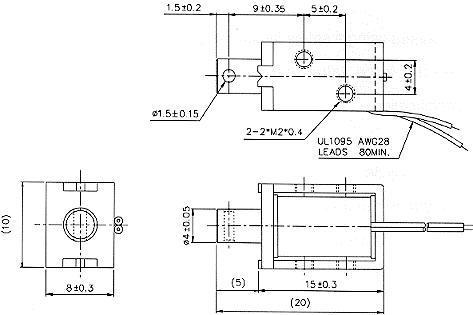

      Shown Energized ??UNIT: mm








            STROKE Vs FORCE


            AMPERE-TURNS Vs FORCE









      COIL DATA





            Duty cycle(%)=  X 100%
            Continuous

              (100%)
            Or less

              (50%)
            Or less

              (25%)
            Or less

              (10%)




            MAX. "on" time in seconds

            50
            18
            3




            Watts at 20oC
            0.8
            1.6
            3.2
            8.0




            Ampere-turns at 20oC
            130
            185
            260
            415




            Type no.
            Resistance (20oC)

                 ?0%
            No. turns
            Volts DC




            RG-O-0415L03AA
            11.2
            489
            3
            4.2
            6
            9.5




            RG-O-0415L06AA
            45
            975
            6
            8.5
            12
            19




            RG-O-0415L12AA
            180
            1950
            12
            17
            24
            38




            RG-O-0415L24AA
            720
            3900
            24
            34
            48
            76
