-- Open Frame Solenoid --
Item No/Type:RG-O-0420L
Name:Open Frame Solenoid

Description:




Plunger Weight: 2g / Total Weight: 8g

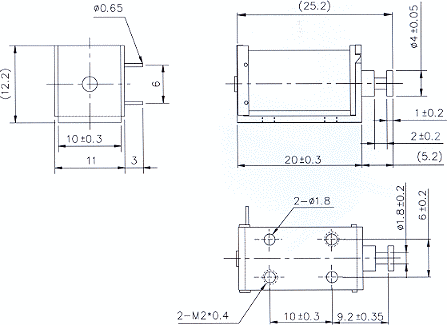

Shown Energized ??UNIT:
mm







    STROKE Vs FORCE

    AMPERE-TURNS Vs FORCE


COIL DATA




    Duty cycle(%)=  X 100%
    Continuous
(100%)
    Or less
(50%)
    Or less
(25%)
    Or less
(10%)



    MAX. "on" time in seconds

    50
    18
    2



    Watts at 20oC
    1.2
    2.4
    4.8
    12.0



    Ampere-turns at 20oC
    219
    309
    438
    692



    Type no.
    Resistance (20oC)
 ?0%
    No. turns
    Volts DC



    RG-O-0420L06AA
    30
    1095
    6
    8.5
    12
    19



    RG-O-0420L12AA
    120
    2190
    12
    17
    24
    38



    RG-O-0420L24AA
    480
    4380
    24
    34
    48
    76



    RG-O-0420L48AA
    1920
    8760
    48
    68
    96
    152
