-- Open Frame Solenoid --
Item No/Type:RG-O-0421L
Name:Open Frame Solenoid

Description:




Plunger Weight: 2g / Total Weight: 10g


Shown Energized ??UNIT:
mm

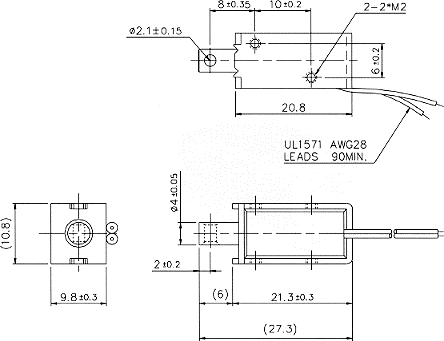

    STROKE Vs FORCE

    AMPERE-TURNS Vs FORCE


COIL DATA




    Duty cycle(%)=  X 100%
    Continuous
(100%)
    Or less
(50%)
    Or less
(25%)
    Or less
(10%)



    MAX. "on" time in seconds

    50
    18
    2



    Watts at 20oC
    1.1
    2.2
    4.4
    11



    Ampere-turns at 20oC
    198
    281
    396
    627



    Type no.
    Resistance (20oC)
 ?0%
    No. turns
    Volts DC



    RG-O-0421L03AA
    8.18
    540
    3
    4.2
    6
    9.5



    RG-O-0421L06AA
    32.7
    1079
    6
    8.5
    12
    19



    RG-O-0421L12AA
    131
    2162
    12
    17
    24
    38



    RG-O-0421L24AA
    524
    4323
    24
    34
    48
    76
