-- Open Frame Solenoid --
Item No/Type:RG-O-0520S
Name:Open Frame Solenoid
Open Frame Solenoid
Description:




Plunger Weight: 2.4g / Total Weight:
18g


Shown Energized

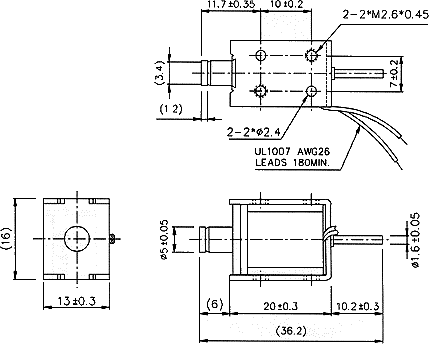

??UNIT: mm

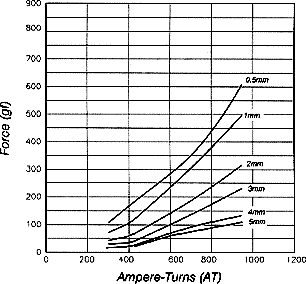

    STROKE Vs FORCE

    AMPERE-TURNS Vs FORCE


COIL DATA




    Duty cycle(%)=  X 100%
    Continuous
(100%)
    Or less
(50%)
    Or less
(25%)
    Or less
(10%)



    MAX. "on" time in seconds

    55
    19
    3



    Watts at 20oC
    1.6
    3.2
    6.4
    16.0



    Ampere-turns at 20oC
    300
    424
    600
    948



    Type no.
    Resistance (20oC)
 ?0%
    No. turns
    Volts DC



    RG-O-0520S06AA
    23
    1150
    6
    8.5
    12
    19



    RG-O-0520S12AA
    90
    2290
    12
    17
    24
    38



    RG-O-0520S24AA
    360
    4500
    24
    34
    48
    76



    RG-O-0520S48AA
    1440
    8600
    48
    68
    96
    152
