-- Open Frame Solenoid --

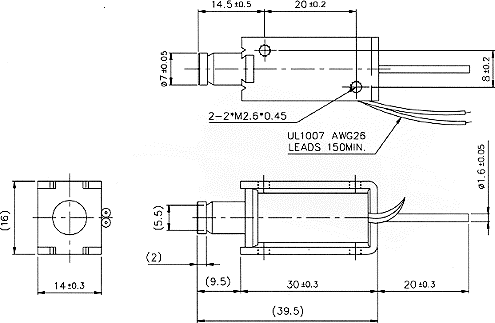

Item No/Type:RG-O-0730S
Name:Open Frame Solenoid

Description:




Plunger Weight: 8g / Total Weight: 33g


Shown Energized ??UNIT:
mm







    STROKE Vs FORCE

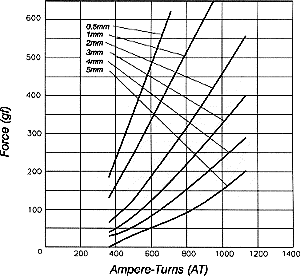

    AMPERE-TURNS Vs FORCE


COIL DATA




    Duty cycle(%)=  X 100%
    Continuous
(100%)
    Or less
(50%)
    Or less
(25%)
    Or less
(10%)



    MAX. "on" time in seconds

    55
    19
    3



    Watts at 20oC
    2.2
    4.4
    8.8
    22



    Ampere-turns at 20oC
    358
    507
    716
    1134



    Type no.
    Resistance (20oC)
 ?0%
    No. turns
    Volts DC



    RG-O-0730S06AA
    16.4
    979
    6
    8.5
    12
    19



    RG-O-0730S12AA
    66.5
    1954
    12
    17
    24
    38



    RG-O-0730S24AA
    262
    3908
    24
    34
    48
    76



    RG-O-0730S48AA
    1047
    7809
    48
    68
    96
    152
