-- Open Frame Solenoid --

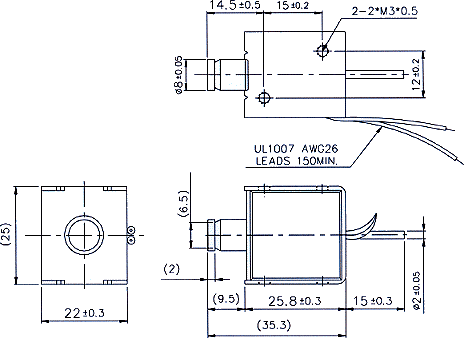

Item No/Type:RG-O-0826S
Name:Open Frame Solenoid

Description:




Plunger Weight: 9g / Total Weight: 66g


Shown Energized ??UNIT:
mm







    STROKE Vs FORCE

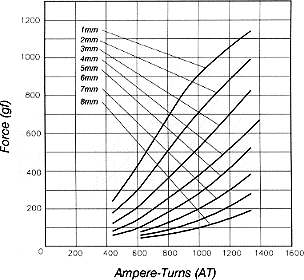

    AMPERE-TURNS Vs FORCE


COIL DATA




    Duty cycle(%)=  X 100%
    Continuous
(100%)
    Or less
(50%)
    Or less
(25%)
    Or less
(10%)



    MAX. "on" time in seconds

    100
    36
    7



    Watts at 20oC
    2.8
    5.6
    11.2
    28



    Ampere-turns at 20oC
    436
    617
    872
    1380



    Type no.
    Resistance (20oC)
 ?0%
    No. turns
    Volts DC



    RG-O-0826S06AA
    12.9
    937
    6
    8.5
    12
    19



    RG-O-0826S12AA
    51.4
    1868
    12
    17
    24
    38



    RG-O-0826S24AA
    206
    3742
    24
    34
    48
    76



    RG-O-0826S48AA
    823
    7476
    48
    68
    96
    152
