-- Open Frame Solenoid --
Item No/Type:RG-O-1040L
Name:Open Frame Solenoid

Description:




                                      Plunger Weight: 22g / Total Weight: 122g

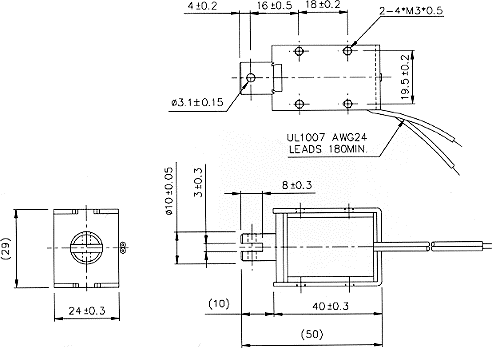

      Shown Energized ??UNIT: mm







          STROKE Vs FORCE

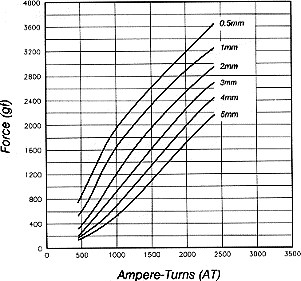

          AMPERE-TURNS Vs FORCE








      COIL DATA




          Duty cycle(%)=  X 100%
          Continuous

            (100%)
          Or less

            (50%)
          Or less

            (25%)
          Or less

            (10%)




          MAX. "on" time in seconds

          100
          36
          7




          Watts at 20oC
          4.2
          8.4
          16.8
          42




          Ampere-turns at 20oC
          655
          925
          1310
          2075




          Type no.
          Resistance (20oC)

               ?0%
          No. turns
          Volts DC




          RG-O-1040L06AA
          8.6
          930
          6
          8.5
          12
          19




          RG-O-1040L12AA
          34
          1900
          12
          17
          24
          38




          RG-O-1040L24AA
          137
          3690
          24
          34
          48
          76




          RG-O-1040L48AA
          548
          7590
          48
          68
          96
          152
