-- Open Frame Solenoid --
Item No/Type:RG-O-1564L
Name:Open Frame Solenoid

Description:




                              Plunger Weight: 39g / Total Weight: 205g

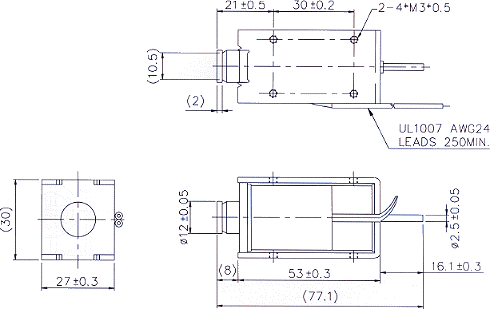

      Shown Energized     UNIT: mm







          STROKE Vs FORCE

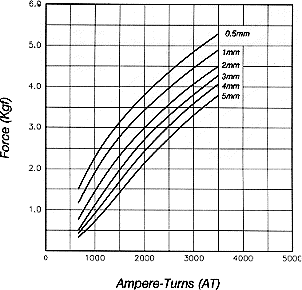

          AMPERE-TURNS Vs FORCE








      COIL DATA




          Duty cycle(%)=  X 100%
          Continuous

            (100%)
          Or less

            (50%)
          Or less

            (25%)
          Or less

            (10%)




          MAX. "on" time in seconds

          140
          50
          9




          Watts at 20oC
          6
          12
          24
          60




          Ampere-turns at 20oC
          937
          1325
          1875
          2964




          Type no.
          Resistance (20oC)

               ±10%
          No. turns
          Volts DC




          RG-O-1253S06AA
          6
          910
          6
          8.5
          12
          19




          RG-O-1253S12AA
          24
          1800
          12
          17
          24
          38




          RG-O-1253S24AA
          96
          3748
          24
          34
          48
          76




          RG-O-1253S48AA
          384
          7090
          48
          68
          96
          152
