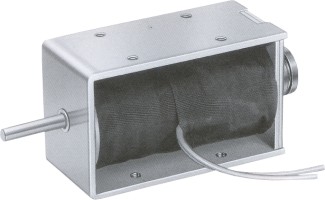

-- Open Frame Solenoid --
Item No/Type:RG-O-1564S
Name:Open Frame Solenoid

Description:




                              Plunger Weight: 71g / Total Weight: 363g

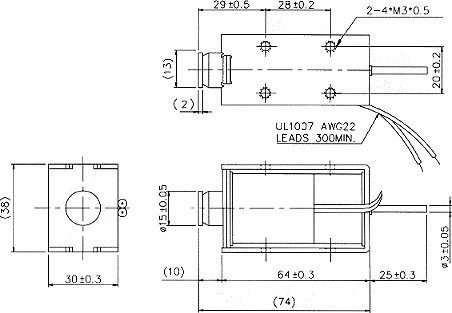

      Shown Energized     UNIT: mm

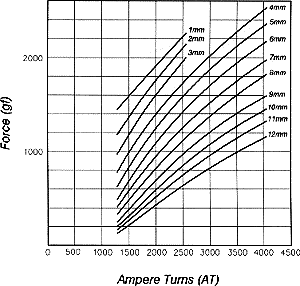

          STROKE Vs FORCE


          AMPERE-TURNS Vs FORCE








      COIL DATA




          Duty cycle(%)=  X 100%
          Continuous

            (100%)
          Or less

            (50%)
          Or less

            (25%)
          Or less

            (10%)




          MAX. "on" time in seconds

          140
          50
          9




          Watts at 20oC
          8
          16
          32
          80




          Ampere-turns at 20oC
          1240
          1750
          2480
          3958




          Type no.
          Resistance (20oC)

               ±10%
          No. turns
          Volts DC




          RG-O-1564S06AA
          4.5
          950
          6
          8.5
          12
          19




          RG-O-1564S12AA
          18
          1900
          12
          17
          24
          38




          RG-O-1564S24AA
          72
          3750
          24
          34
          48
          76




          RG-O-1564S48AA
          288
          7440
          48
          68
          96
          152
