-- Permanent Magnet Solenoid --
Item No/Type:RG-K-1253S
Name:Permanent Magnet Solenoid

Description:




                              Plunger Weight: 43g / Total Weight: 211g

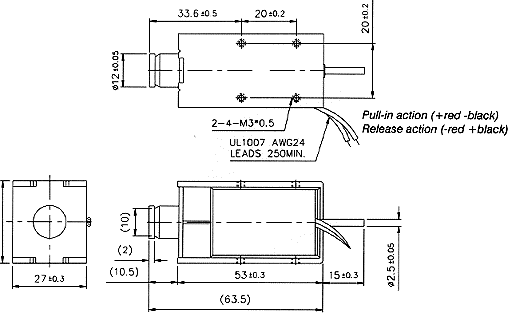

      Shown Energized     UNIT: mm

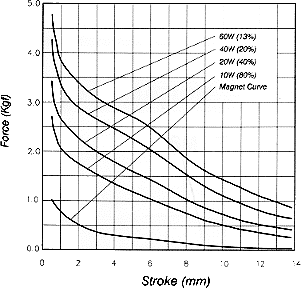

          STROKE Vs FORCE

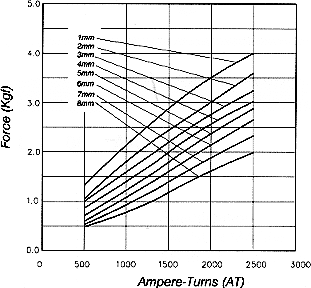

          AMPERE-TURNS Vs FORCE
















                COIL DATA
                Release Voltage: Rated Voltage of 12 Watts !O 10%(Reference)













                Duty cycle(%)=  X 100%
                Or less

                  (33%)
                Or less

                  (20%)
                Or less

                  (10%)
                Or less

                  (7%)




                MAX. "on" time in seconds
                400
                90
                35
                20




                Watts at 20oC
                10
                20
                40
                60




                Ampere-turns at 20oC
                950
                1341
                1898
                2327




                Type no.
                Resistance (20oC)

                     !O10%
                No. turns
                Volts DC




                RG-K-1253S5.4AA
                3.6
                565
                6
                8
                12
                15




                RG-K-1253S10.7AA
                14.4
                1130
                12
                17
                24
                29




                RG-K-1253S21.5AA
                57.6
                2310
                24
                34
                48
                59




                RG-K-1253S42.9AA
                230
                4500
                48
                68
                96
                117
