-- Permanent Magnet Solenoid --
Item No/Type:RG-K-0730S
Name:Permanent Magnet Solenoid

Description:




                              Plunger Weight: 8g / Total Weight: 34g

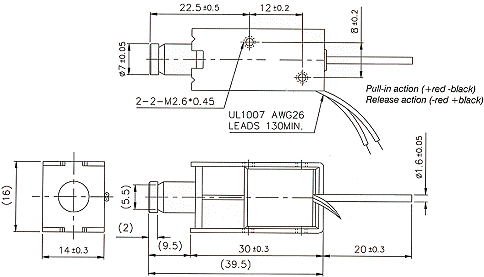

      Shown Energized     UNIT: mm







          STROKE Vs FORCE

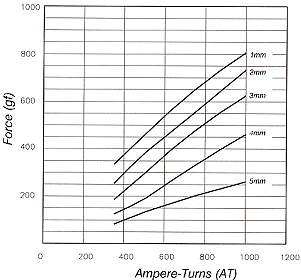

          AMPERE-TURNS Vs FORCE
















                COIL DATA
                Release Voltage: Rated Voltage of 4.8 Watts !O 10%(Reference)













                Duty cycle(%)=  X 100%
                Or less

                  (63%)
                Or less

                  (30%)
                Or less

                  (15%)
                Or less

                  (10%)




                MAX. "on" time in seconds
                60
                30
                10
                8




                Watts at 20oC
                4.8
                10
                20
                30




                Ampere-turns at 20oC
                350
                510
                710
                880




                Type no.
                Resistance (20oC)

                     !O10%
                No. turns
                Volts DC




                RG-K-0730S4.8AA
                7.5
                490
                6
                8.7
                12.2
                15




                RG-K-0730S9.5AA
                30
                916
                12
                17.4
                24.5
                30




                RG-K-0730S19AA
                120
                1700
                24
                34.8
                49
                60




                RG-K-0730S38AA
                480
                3320
                48
                69.6
                98
                120
