-- Push-Pull Solenoid --
Item No/Type:RG-T-5936SL
Name:Push-Pull Solenoid

Description:




                              Plunger Weight: 145g / Total Weight: 620g

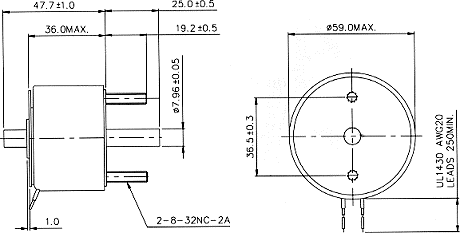

                              Shown Energized     UNIT: mm

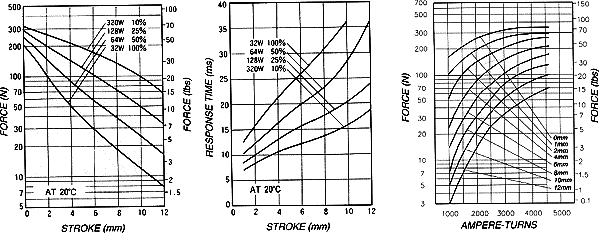

                                  STROKE Vs FORCE
                                  STROKE Vs RESPONSE TIME
                                  AMPERE-TURNS Vs FORCE



















                                        COIL DATA
                                        Heat Sink: 310 x 310 x 3mm(alumimum)













                                        Duty cycle(%)=  X 100%
                                        Continuous

                                          (100%)
                                        Or less

                                          (50%)
                                        Or less

                                          (25%)
                                        Or less

                                          (10%)




                                        MAX. "on" time in seconds

                                        87
                                        36
                                        13




                                        Watts at 20oC
                                        32
                                        64
                                        128
                                        320




                                        Ampere-turns at 20oC
                                        1480
                                        2080
                                        2940
                                        4620




                                        Type no.
                                        Resistance (20oC)

                                             ±10%
                                        No. turns
                                        Volts DC




                                        RG-T-5936SL06AA
                                        1.13
                                        278
                                        6
                                        8.5
                                        12
                                        19




                                        RG-T-5936SL12AA
                                        4.5
                                        555
                                        12
                                        17
                                        24
                                        38




                                        RG-T-5936SL24AA
                                        18
                                        1110
                                        24
                                        34
                                        48
                                        76




                                        RG-T-5936SL48AA
                                        72
                                        2220
                                        48
                                        68
                                        96
                                        152
