-- Tubular Solenoid --
Item No/Type:RG-T-1632S
Name:Tubular Solenoid

Description:

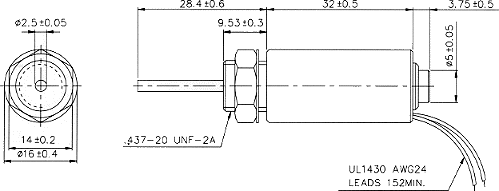

                              Plunger Weight: 6.5g / Total Weight: 47g





                              Shown Energized     UNIT: mm

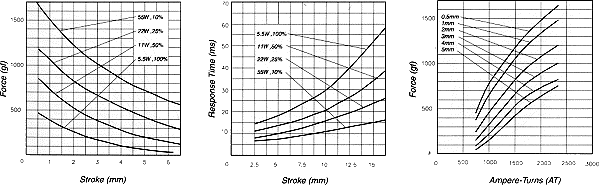

                                  STROKE Vs FORCE
                                  STROKE Vs RESPONSE TIME
                                  AMPERE-TURNS Vs FORCE



















                                        COIL DATA
                                        Heat Sink: 50 x 50 x 3mm(alumimum)













                                        Duty cycle(%)=  X 100%
                                        Continuous

                                          (100%)
                                        Or less

                                          (50%)
                                        Or less

                                          (25%)
                                        Or less

                                          (10%)




                                        MAX. "on" time in seconds

                                        230
                                        25
                                        6




                                        Watts at 20oC
                                        5.5
                                        11
                                        22
                                        55




                                        Ampere-turns at 20oC
                                        738
                                        1058
                                        1476
                                        2338




                                        Type no.
                                        Resistance (20oC)

                                             ±10%
                                        No. turns
                                        Volts DC




                                        RG-T-1632S06AA
                                        6.5
                                        800
                                        6
                                        8.5
                                        12
                                        19




                                        RG-T-1632S12AA
                                        26.2
                                        1600
                                        12
                                        17
                                        24
                                        38




                                        RG-T-1632S24AA
                                        104.7
                                        3200
                                        24
                                        34
                                        48
                                        76




                                        RG-T-1632S48AA
                                        419
                                        6200
                                        48
                                        68
                                        96
                                        152
