-- Tubular Solenoid --
Item No/Type:RG-T-3864S
Name:Tubular Solenoid

Description:




                              Plunger Weight: 95g / Total Weight: 497g

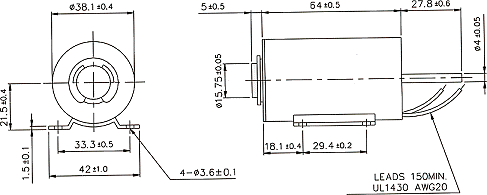

                              Shown Energized     UNIT: mm

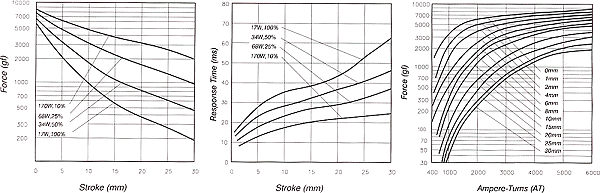

                                  STROKE Vs FORCE
                                  STROKE Vs RESPONSE TIME
                                  AMPERE-TURNS Vs FORCE



















                                        COIL DATA
                                        Heat Sink: 150 x 150 x 3mm(alumimum)













                                        Duty cycle(%)=  X 100%
                                        Continuous

                                          (100%)
                                        Or less

                                          (50%)
                                        Or less

                                          (25%)
                                        Or less

                                          (10%)




                                        MAX. "on" time in seconds

                                        420
                                        100
                                        25




                                        Watts at 20oC
                                        17
                                        34
                                        68
                                        170




                                        Ampere-turns at 20oC
                                        1800
                                        2546
                                        3600
                                        5692




                                        Type no.
                                        Resistance (20oC)

                                             ±10%
                                        No. turns
                                        Volts DC




                                        RG-T-3864S06AA
                                        2.1
                                        630
                                        6
                                        8.5
                                        12
                                        19




                                        RG-T-3864S12AA
                                        8.5
                                        1275
                                        12
                                        17
                                        24
                                        38




                                        RG-T-3864S24AA
                                        34
                                        2550
                                        24
                                        34
                                        48
                                        76




                                        RG-T-3864S48AA
                                        136
                                        5535
                                        48
                                        68
                                        96
                                        152
