-- Open Frame Solenoid --
Item No/Type:RG-O-1037L
Name:Open Frame Solenoid
Open Frame Solenoid
Description:




Plunger Weight: 19g / Total Weight:
96g


Shown Energized

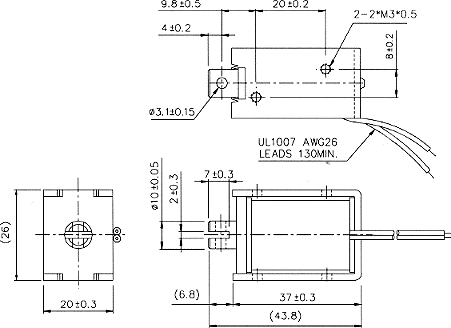

??UNIT: mm







    STROKE Vs FORCE

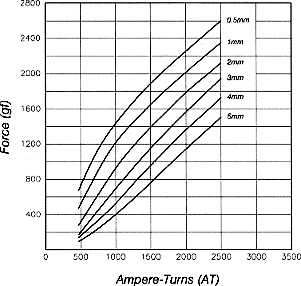

    AMPERE-TURNS Vs FORCE


COIL DATA




    Duty cycle(%)=  X 100%
    Continuous
(100%)
    Or less
(50%)
    Or less
(25%)
    Or less
(10%)



    MAX. "on" time in seconds

    100
    36
    7



    Watts at 20oC
    4
    8
    16
    40



    Ampere-turns at 20oC
    600
    850
    1200
    1900



    Type no.
    Resistance (20oC)
 ?0%
    No. turns
    Volts DC



    RG-O-1037L06AA
    9
    980
    6
    8.5
    12
    19



    RG-O-1037L12AA
    36
    1700
    12
    17
    24
    38



    RG-O-1037L24AA
    144
    3600
    24
    34
    48
    76



    RG-O-1037L48AA
    576
    7300
    48
    68
    96
    152
