RG-O-0420L Open Frame Solenoid

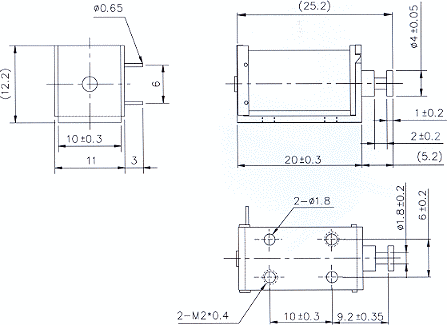

Size(mm)L x W x H : 20.0 x 11.0 x 12.0
Item No/Type: RG-O-0420L
Plunger Weight: 2g / Total Weight: 8g
Description
Shown Energized ??UNIT: mm
STROKE Vs FORCE
AMPERE-TURNS Vs FORCE
COIL DATA
Duty cycle(%)=
X 100%
|
Continuous(100%)
|
Or less(50%)
|
Or less(25%)
|
Or less(10%)
|
| MAX. "on" time in seconds |
∞
|
50 | 18 | 2 |
| Watts at 20°C |
1.2 | 2.4 | 4.8 | 12.0 |
| Ampere-turns at 20°C |
219 | 309 | 438 | 692 |
|
Type no.
|
Resistance (20°C)
Ω 0% |
No. turns |
Volts DC
|
|||
| RG-O-0420L06AA |
30 | 1095 | 6 | 8.5 | 12 | 19 |
| RG-O-0420L12AA |
120 | 2190 | 12 | 17 | 24 | 38 |
| RG-O-0420L24AA |
480 | 4380 | 24 | 34 | 48 | 76 |
| RG-O-0420L48AA |
1920 | 8760 | 48 | 68 | 96 | 152 |
