RG-O-1040S Open Frame Solenoid

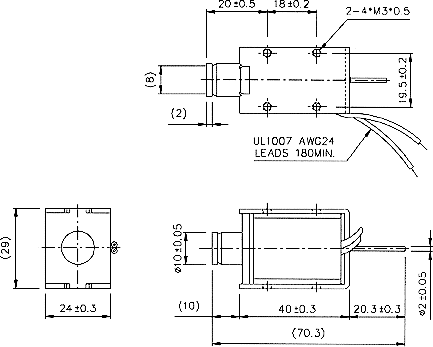

Size(mm)L x W x H : 40.0 x 24.0 x 29.0
Item No/Type: RG-O-1040S
Plunger Weight: 22g / Total Weight: 122g
Description
Shown Energized ??UNIT: mm

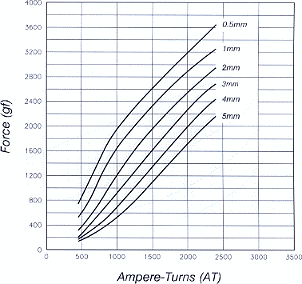

STROKE Vs FORCE
AMPERE-TURNS Vs FORCE
COIL DATA
Duty cycle(%)=
X 100%
|
Continuous(100%)
|
Or less(50%)
|
Or less(25%)
|
Or less(10%)
|
| MAX. "on" time in seconds |
∞
|
100 | 36 | 7 |
| Watts at 20°C |
4.2 | 8.4 | 16.8 | 42 |
| Ampere-turns at 20°C |
655 | 925 | 1310 | 2075 |
|
Type no.
|
Resistance (20°C)
Ω 0% |
No. turns |
Volts DC
|
|||
| RG-O-1040S06AA |
8.6 | 930 | 6 | 8.5 | 12 | 19 |
| RG-O-1040S12AA |
34 | 1900 | 12 | 17 | 24 | 38 |
| RG-O-1040S24AA |
137 | 3690 | 24 | 34 | 48 | 76 |
| RG-O-1040S48AA |
548 | 7590 | 48 | 68 | 96 | 152 |
