RG-O-1250S Open Frame Solenoid

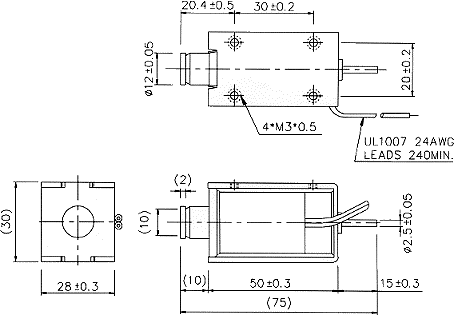

Size(mm)L x W x H : 50.0 x 28.0 x 30.0
Item No/Type: RG-O-1250S
Plunger Weight: 41g / Total Weight: 208g
Description
Shown Energized ??UNIT: mm
STROKE Vs FORCE
AMPERE-TURNS Vs FORCE
COIL DATA
Duty cycle(%)=
X 100%
|
Continuous(100%)
|
Or less(50%)
|
Or less(25%)
|
Or less(10%)
|
| MAX. "on" time in seconds |
∞
|
140 | 50 | 9 |
| Watts at 20°C |
5.5 | 11 | 22 | 55 |
| Ampere-turns at 20°C |
854 | 1210 | 1708 | 2704 |
|
Type no.
|
Resistance (20°C)
Ω 0% |
No. turns |
Volts DC
|
|||
| RG-O-1250S06AA |
6.5 | 925 | 6 | 8.5 | 12 | 19 |
| RG-O-1250S12AA |
26.2 | 1865 | 12 | 17 | 24 | 38 |
| RG-O-1250S24AA |
104.5 | 3736 | 24 | 34 | 48 | 76 |
| RG-O-1250S48AA |
419 | 7455 | 48 | 68 | 96 | 152 |
