RG-O-1253L Open Frame Solenoid

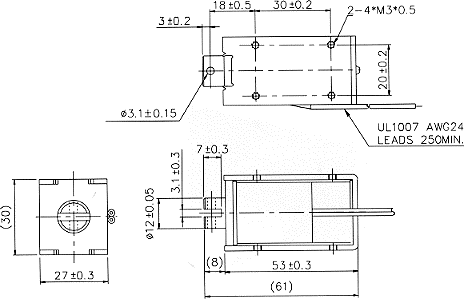

Size(mm)L x W x H : 53.0 x 27.0 x 30.0
Item No/Type: RG-O-1253L
Plunger Weight: 39g / Total Weight: 205g
Description
Shown Energized ??UNIT: mm
STROKE Vs FORCE
AMPERE-TURNS Vs FORCE
COIL DATA
Duty cycle(%)=
X 100%
|
Continuous(100%)
|
Or less(50%)
|
Or less(25%)
|
Or less(10%)
|
| MAX. "on" time in seconds |
∞
|
140 | 50 | 9 |
| Watts at 20°C |
6 | 12 | 24 | 60 |
| Ampere-turns at 20°C |
937 | 1325 | 1875 | 2964 |
|
Type no.
|
Resistance (20°C)
Ω 0% |
No. turns |
Volts DC
|
|||
| RG-O-1253L06AA |
6 | 910 | 6 | 8.5 | 12 | 19 |
| RG-O-1253L12AA |
24 | 1800 | 12 | 17 | 24 | 38 |
| RG-O-1253L24AA |
96 | 3748 | 24 | 34 | 48 | 76 |
| RG-O-1253L48AA |
384 | 7090 | 48 | 68 | 96 | 152 |
