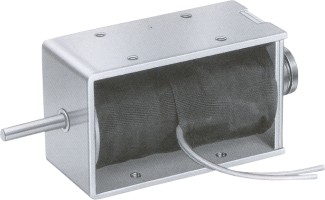

RG-O-1564S Open Frame Solenoid
Size(mm)L x W x H : 64.0 x 30.0 x 38.0
Item No/Type: RG-O-1564S
Plunger Weight: 71g / Total Weight: 363g
Description
Shown Energized ??UNIT: mm
STROKE Vs FORCE
AMPERE-TURNS Vs FORCE
COIL DATA
Duty cycle(%)=
X 100%
|
Continuous(100%)
|
Or less(50%)
|
Or less(25%)
|
Or less(10%)
|
| MAX. "on" time in seconds |
∞
|
140 | 50 | 9 |
| Watts at 20°C |
8 | 16 | 32 | 80 |
| Ampere-turns at 20°C |
1240 | 1750 | 2480 | 3958 |
|
Type no.
|
Resistance (20°C)
Ω 0% |
No. turns |
Volts DC
|
|||
| RG-O-1564S06AA |
4.5 | 950 | 6 | 8.5 | 12 | 19 |
| RG-O-1564S12AA |
18 | 1900 | 12 | 17 | 24 | 38 |
| RG-O-1564S24AA |
72 | 3750 | 24 | 34 | 48 | 76 |
| RG-O-1564S48AA |
288 | 7440 | 48 | 68 | 96 | 152 |
