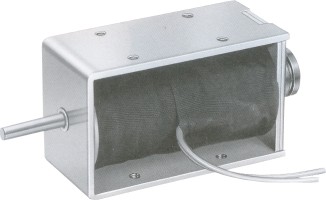

RG-O-1578S Open Frame Solenoid

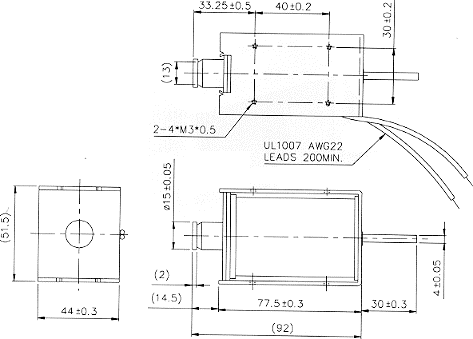

Size(mm)L x W x H : 77.5 x 44.0 x 51.5
Item No/Type: RG-O-1578S
Plunger Weight: 91g / Total Weight: 800g
Description
Shown Energized ??UNIT: mm

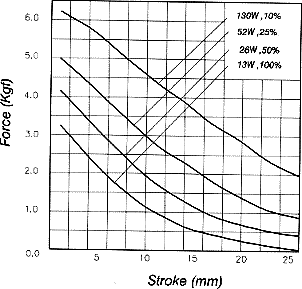

STROKE Vs FORCE
AMPERE-TURNS Vs FORCE
COIL DATA
Duty cycle(%)=
X 100%
|
Continuous(100%)
|
Or less(50%)
|
Or less(25%)
|
Or less(10%)
|
| MAX. "on" time in seconds |
∞
|
160 | 80 | 32 |
| Watts at 20°C |
13 | 26 | 52 | 130 |
| Ampere-turns at 20°C |
2030 | 2870 | 4060 | 6430 |
|
Type no.
|
Resistance (20°C)
Ω 0% |
No. turns |
Volts DC
|
|||
| RG-O-1578S06AA |
2.8 | 940 | 6 | 8.5 | 12 | 19 |
| RG-O-1578S12AA |
11.1 | 1930 | 12 | 17 | 24 | 38 |
| RG-O-1578S24AA |
44.3 | 3820 | 24 | 34 | 48 | 76 |
| RG-O-1578S48AA |
177 | 7400 | 48 | 68 | 96 | 152 |
