RG-O-0415L Open Frame Solenoid

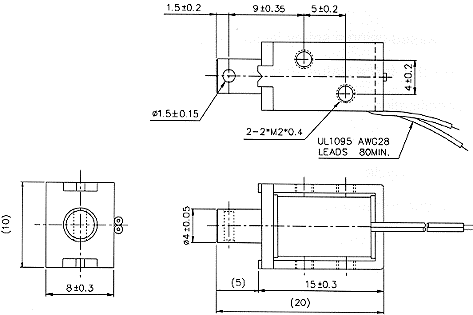

Size(mm)L x W x H : 15.0 x 8.0 x 10.0
Item No/Type: RG-O-0415L
Plunger Weight: 0.6g / Total Weight: 5.4g
Description
Shown Energized ??UNIT: mm
STROKE Vs FORCE
AMPERE-TURNS Vs FORCE
COIL DATA
Duty cycle(%)=
X 100%
|
Continuous(100%)
|
Or less(50%)
|
Or less(25%)
|
Or less(10%)
|
| MAX. "on" time in seconds |
∞
|
50 | 18 | 3 |
| Watts at 20°C |
0.8 | 1.6 | 3.2 | 8.0 |
| Ampere-turns at 20°C |
130 | 185 | 260 | 415 |
|
Type no.
|
Resistance (20°C)
Ω 0% |
No. turns |
Volts DC
|
|||
| RG-O-0415L03AA |
11.2 | 489 | 3 | 4.2 | 6 | 9.5 |
| RG-O-0415L06AA |
45 | 975 | 6 | 8.5 | 12 | 19 |
| RG-O-0415L12AA |
180 | 1950 | 12 | 17 | 24 | 38 |
| RG-O-0415L24AA |
720 | 3900 | 24 | 34 | 48 | 76 |
