RG-O-0626S Open Frame Solenoid

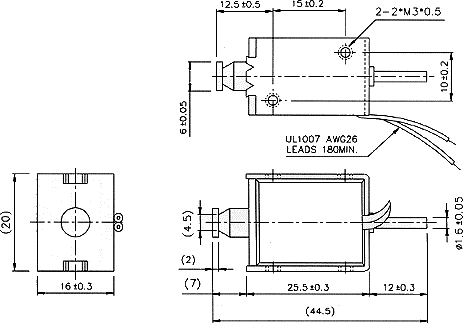

Size(mm)L x W x H : 25.5 x 16.0 x 20.0
Item No/Type: RG-O-0626S
Plunger Weight: 5g / Total Weight: 43g
Description
Shown Energized ??UNIT: mm
STROKE Vs FORCE

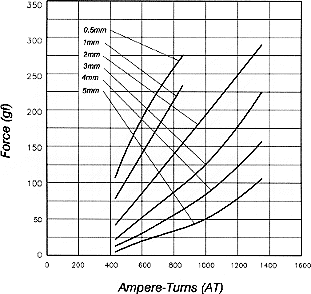

AMPERE-TURNS Vs FORCE
COIL DATA
Duty cycle(%)=
X 100%
|
Continuous(100%)
|
Or less(50%)
|
Or less(25%)
|
Or less(10%)
|
| MAX. "on" time in seconds |
∞
|
55 | 19 | 3 |
| Watts at 20°C |
2.1 | 4.2 | 8.4 | 21 |
| Ampere-turns at 20°C |
428 | 605 | 856 | 1353 |
|
Type no.
|
Resistance (20°C)
Ω 0% |
No. turns |
Volts DC
|
|||
| RG-O-0626S06AA |
17.1 | 1220 | 6 | 8.5 | 12 | 19 |
| RG-O-0626S12AA |
68.6 | 2447 | 12 | 17 | 24 | 38 |
| RG-O-0626S24AA |
274 | 4886 | 24 | 34 | 48 | 76 |
| RG-O-0626S48AA |
1097 | 9782 | 48 | 68 | 96 | 152 |
