RG-O-0630S Open Frame Solenoid

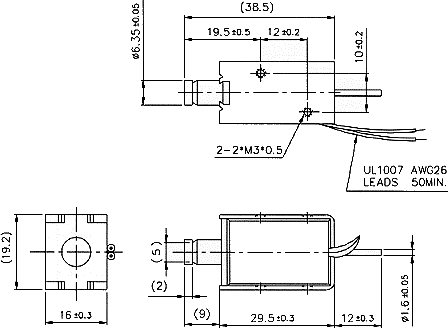

Size(mm)L x W x H : 29.5 x 16.0 x 19.2
Item No/Type: RG-O-0630S
Plunger Weight: 5g / Total Weight: 42g
Description
Shown Energized ??UNIT: mm
STROKE Vs FORCE

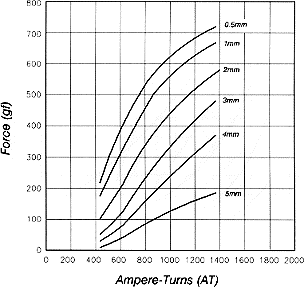

AMPERE-TURNS Vs FORCE
COIL DATA
Duty cycle(%)=
X 100%
|
Continuous(100%)
|
Or less(50%)
|
Or less(25%)
|
Or less(10%)
|
| MAX. "on" time in seconds |
∞
|
55 | 19 | 3 |
| Watts at 20°C |
2.4 | 4.8 | 8.6 | 24 |
| Ampere-turns at 20°C |
432 | 615 | 864 | 1368 |
|
Type no.
|
Resistance (20°C)
Ω 0% |
No. turns |
Volts DC
|
|||
| RG-O-0630S06AA |
15 | 1080 | 6 | 8.5 | 12 | 19 |
| RG-O-0630S12AA |
60 | 2160 | 12 | 17 | 24 | 38 |
| RG-O-0630S24AA |
240 | 4320 | 24 | 34 | 48 | 76 |
| RG-O-0630S48AA |
960 | 8640 | 48 | 68 | 96 | 152 |
