RG-O-0730S Open Frame Solenoid

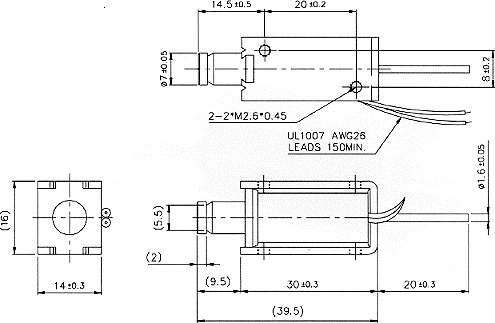

Size(mm)L x W x H : 30.0 x 14.0 x 16.0
Item No/Type: RG-O-0730S
Plunger Weight: 8g / Total Weight: 33g
Description
Shown Energized ??UNIT: mm
STROKE Vs FORCE

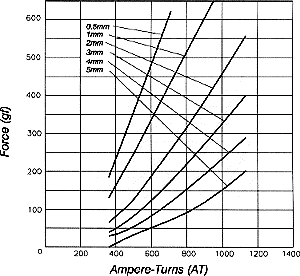

AMPERE-TURNS Vs FORCE
COIL DATA
Duty cycle(%)=
X 100%
|
Continuous(100%)
|
Or less(50%)
|
Or less(25%)
|
Or less(10%)
|
| MAX. "on" time in seconds |
∞
|
55 | 19 | 3 |
| Watts at 20°C |
2.2 | 4.4 | 8.8 | 22 |
| Ampere-turns at 20°C |
358 | 507 | 716 | 1134 |
|
Type no.
|
Resistance (20°C)
Ω 0% |
No. turns |
Volts DC
|
|||
| RG-O-0730S06AA |
16.4 | 979 | 6 | 8.5 | 12 | 19 |
| RG-O-0730S12AA |
66.5 | 1954 | 12 | 17 | 24 | 38 |
| RG-O-0730S24AA |
262 | 3908 | 24 | 34 | 48 | 76 |
| RG-O-0730S48AA |
1047 | 7809 | 48 | 68 | 96 | 152 |
