RG-O-1037S Open Frame Solenoid

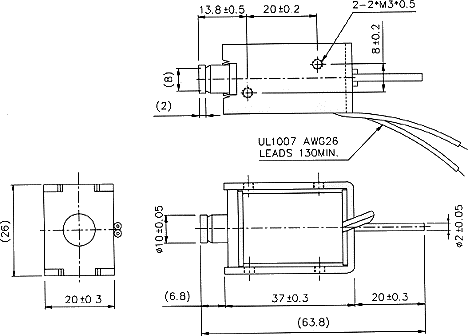

Size(mm)L x W x H : 37.0 x 20.0 x 26.0
Item No/Type: RG-O-1037S
Plunger Weight: 19g / Total Weight: 96g
Description
Shown Energized ??UNIT: mm
STROKE Vs FORCE

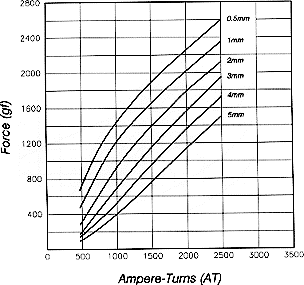

AMPERE-TURNS Vs FORCE
COIL DATA
Duty cycle(%)=
X 100%
|
Continuous(100%)
|
Or less(50%)
|
Or less(25%)
|
Or less(10%)
|
| MAX. "on" time in seconds |
∞
|
100 | 36 | 7 |
| Watts at 20°C |
4 | 8 | 16 | 40 |
| Ampere-turns at 20°C |
600 | 850 | 1200 | 1900 |
|
Type no.
|
Resistance (20°C)
Ω 0% |
No. turns |
Volts DC
|
|||
| RG-O-1037S06AA |
9 | 980 | 6 | 8.5 | 12 | 19 |
| RG-O-1037S12AA |
36 | 1700 | 12 | 17 | 24 | 38 |
| RG-O-1037S24AA |
144 | 3600 | 24 | 34 | 48 | 76 |
| RG-O-1037S48AA |
576 | 7300 | 48 | 68 | 96 | 152 |
