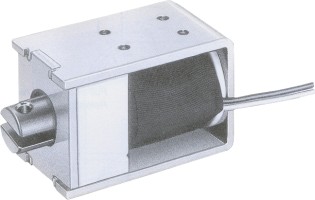

RG-K-1253L Permanent Magnet Solenoid
Item No/Type: RG-K-1253L
Plunger Weight: 43g / Total Weight: 211g
Description

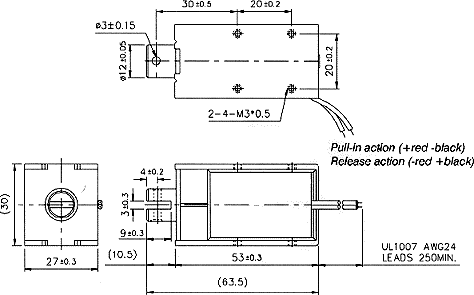

Shown Energized ??UNIT: mm

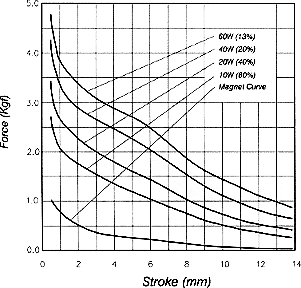

STROKE Vs FORCE

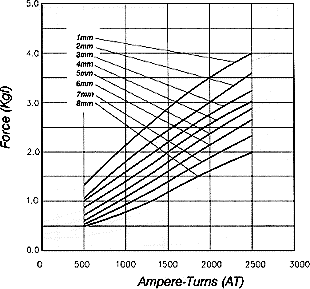

AMPERE-TURNS Vs FORCE
COIL DATA
Duty cycle(%)=
X 100%
|
Continuous(33%)
|
Or less(20%)
|
Or less(10%)
|
Or less(7%)
|
| MAX. "on" time in seconds |
400 | 90 | 35 | 20 |
| Watts at 20°C |
10 | 20 | 40 | 60 |
| Ampere-turns at 20°C |
950 | 1341 | 1898 | 2327 |
|
Type no.
|
Resistance (20°C)
Ω 010 % |
No. turns |
Volts DC
|
|||
| RG-k-1253L5.4AA |
3.6 | 565 | 6 | 8 | 12 | 15 |
| RG-K-1253L10.7AA |
14.4 | 1130 | 12 | 17 | 24 | 29 |
| RG-K-1253L21.5AA |
57.6 | 2310 | 24 | 34 | 48 | 59 |
| RG-K-1253L42.9AA |
230 | 4500 | 48 | 68 | 96 | 117 |
