RG-RT-4925 Rotary Solenoid

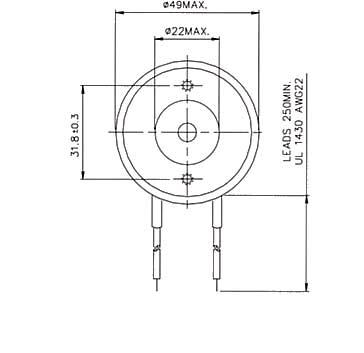

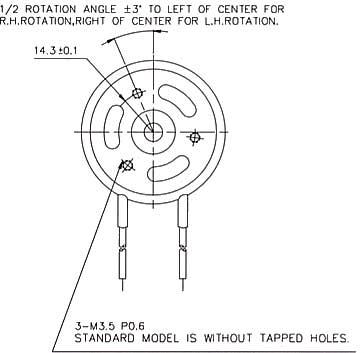

Description

COIL DATA

Heat Sink: 190 x 190 x 3mm (aluminum) Return spring torque: 0.0165~0.0124 N.m

Duty cycle(%)=     X 100%	Continuous(100%)	Or less(75%)	Or less(50%)	Or less(25%)	Or less(10%)
MAX. "on" time in seconds	∞	110	100	36	10
Watts at 20°C	21	28	42	84	210
Ampere-turns at 20°C	842	966	1190	1685	2660

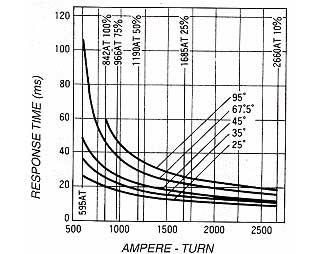

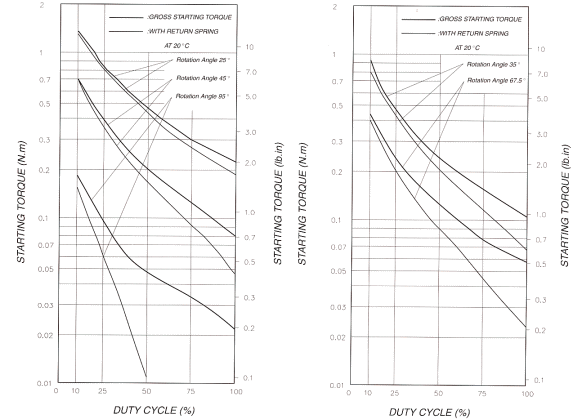

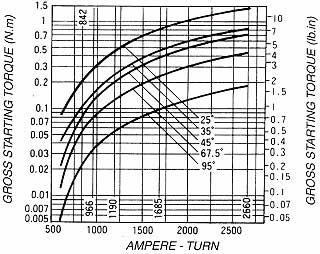

Gross starting torque at 20°C (N.m) A:25°	0.22	0.3	0.47	0.84	1.39
Gross starting torque at 20°C (N.m) B:35°	0.104	0.15	0.24	0.47	0.84
Gross starting torque at 20°C (N.m) C:45°	0.081	0.127	0.195	0.39	0.725
Gross starting torque at 20°C (N.m) D:67.5°	0.058	0.081	0.127	0.23	0.45
Gross starting torque at 20°C (N.m) E:95°	0.022	0.035	0.046	0.098	0.185
