RG-T-1130S Tubular Solenoid

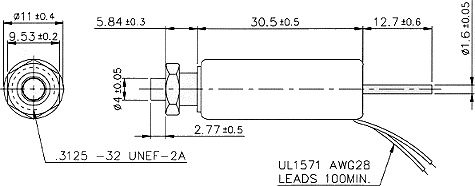

Size(mm)L x Dia. 30.5 x Ø11.0
Item No/Type: RG-T-1130S
Plunger Weight: 3.2g / Total Weight: 17g
Description
Shown Energized UNIT: mm
STROKE Vs FORCE
STROKE Vs RESPONSE TIME
AMPERE-TURNS Vs FORCE
COIL DATA
Duty cycle(%)=
X 100%
|
Continuous(100%)
|
Or less(50%)
|
Or less(25%)
|
Or less(10%)
|
| MAX. "on" time in seconds |
∞
|
50 | 5 | 2 |
| Watts at 20°C |
4 | 8 | 16 | 40 |
| Ampere-turns at 20°C |
497 | 704 | 994 | 1573 |
|
Type no.
|
Resistance (20°C)
Ω ±10% |
No. turns |
Volts DC
|
|||
| RG-T-1130S06AA |
9 | 745 | 6 | 8.5 | 12 | 19 |
| RG-T-1130S12AA |
36 | 1492 | 12 | 17 | 24 | 38 |
| RG-T-1130S24AA |
144 | 2972 | 24 | 34 | 48 | 76 |
| RG-T-1130S48AA |
576 | 5850 | 48 | 68 | 96 | 152 |
