RG-T-1421SL Push-Pull Solenoid
Item No/Type: RG-T-1421SL
Plunger Weight: 3g / Total Weight: 18g
Description

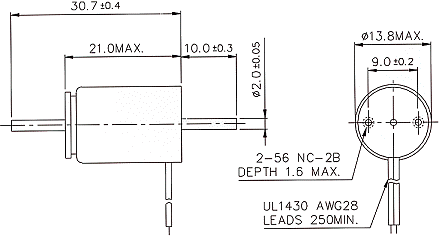

Shown Energized UNIT: mm
STROKE Vs FORCE
STROKE Vs RESPONSE TIME
AMPERE-TURNS Vs FORCE
COIL DATA
Duty cycle(%)=
X 100%
|
Continuous(100%)
|
Or less(50%)
|
Or less(25%)
|
Or less(10%)
|
| MAX. "on" time in seconds |
∞
|
100 | 36 | 7 |
| Watts at 20°C |
1.8 | 3.6 | 7.2 | 18 |
| Ampere-turns at 20°C |
236 | 334 | 472 | 746 |
|
Type no.
|
Resistance (20°C)
Ω ±10% |
No. turns |
Volts DC
|
|||
| RG-T-1421SL06AA |
5 | 415 | 3 | 4.2 | 6 | 9.5 |
| RG-T-1421SL12AA |
20 | 800 | 5 | 8.5 | 12 | 19 |
| RG-T-1421SL24AA |
80 | 1600 | 12 | 17 | 24 | 38 |
| RG-T-1421SL48AA |
320 | 3130 | 24 | 34 | 48 | 76 |
