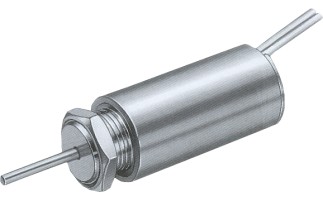

RG-T-1325S Tubular Solenoid

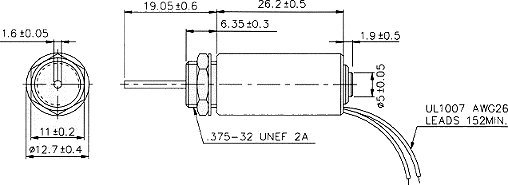

Size(mm)L x Dia. 26.2 x Ø12.7
Item No/Type: RG-T-1325S
Plunger Weight: 4.9g / Total Weight: 23g
Description
Shown Energized UNIT: mm
STROKE Vs FORCE
STROKE Vs RESPONSE TIME
AMPERE-TURNS Vs FORCE
COIL DATA
Duty cycle(%)=
X 100%
|
Continuous(100%)
|
Or less(50%)
|
Or less(25%)
|
Or less(10%)
|
| MAX. "on" time in seconds |
∞
|
50 | 5 | 2 |
| Watts at 20°C |
4 | 8 | 16 | 40 |
| Ampere-turns at 20°C |
453 | 640 | 905 | 1440 |
|
Type no.
|
Resistance (20°C)
Ω ±10% |
No. turns |
Volts DC
|
|||
| RG-T-1325S06AA |
9 | 680 | 6 | 8.5 | 12 | 19 |
| RG-T-1325S12AA |
36 | 1359 | 12 | 17 | 24 | 38 |
| RG-T-1325S24AA |
144 | 2700 | 24 | 34 | 48 | 76 |
| RG-T-1325S48AA |
576 | 5400 | 48 | 68 | 96 | 152 |
