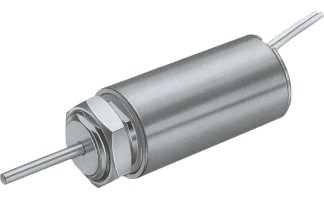

RG-T-1939S Tubular Solenoid
Size(mm)L x Dia. 39.3 x Ø20.2
Item No/Type: RG-T-1939S
Plunger Weight: 14g / Total Weight: 81g
Description

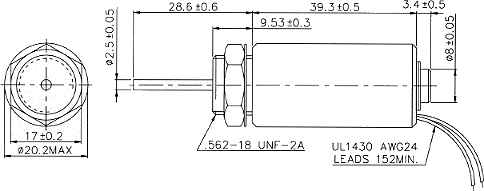

Shown Energized UNIT: mm
STROKE Vs FORCE
STROKE Vs RESPONSE TIME
AMPERE-TURNS Vs FORCE
COIL DATA
Duty cycle(%)=
X 100%
|
Continuous(100%)
|
Or less(50%)
|
Or less(25%)
|
Or less(10%)
|
| MAX. "on" time in seconds |
∞
|
230 | 25 | 6 |
| Watts at 20°C |
7 | 14 | 28 | 70 |
| Ampere-turns at 20°C |
855 | 1200 | 1700 | 2700 |
|
Type no.
|
Resistance (20°C)
Ω ±10% |
No. turns |
Volts DC
|
|||
| RG-T-1939S06AA |
5.14 | 733 | 6 | 8.5 | 12 | 19 |
| RG-T-1939S12AA |
20.6 | 1470 | 12 | 17 | 24 | 38 |
| RG-T-1939S24AA |
82.3 | 2930 | 24 | 34 | 48 | 76 |
| RG-T-1939S48AA |
329 | 5800 | 48 | 68 | 96 | 152 |
