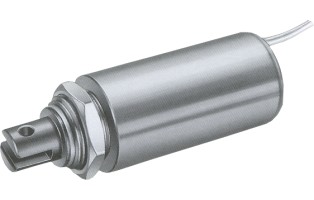

RG-T-2551L Tubular Solenoid

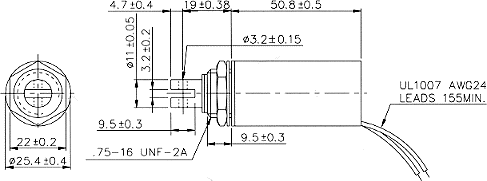

Size(mm)L x Dia. 50.8 x Ø25.4
Item No/Type: RG-T-2551L
Plunger Weight: 43g / Total Weight: 178g
Description
Shown Energized UNIT: mm
STROKE Vs FORCE
STROKE Vs RESPONSE TIME
AMPERE-TURNS Vs FORCE
COIL DATA
Duty cycle(%)=
X 100%
|
Continuous(100%)
|
Or less(50%)
|
Or less(25%)
|
Or less(10%)
|
| MAX. "on" time in seconds |
∞
|
360 | 32 | 8 |
| Watts at 20°C |
10 | 20 | 40 | 100 |
| Ampere-turns at 20°C |
1090 | 1541 | 2180 | 3447 |
|
Type no.
|
Resistance (20°C)
Ω ±10% |
No. turns |
Volts DC
|
|||
| RG-T-2551L06AA |
3.6 | 654 | 6 | 8.5 | 12 | 19 |
| RG-T-2551L12AA |
14.4 | 1309 | 12 | 17 | 24 | 38 |
| RG-T-2551L24AA |
57.6 | 2614 | 24 | 34 | 48 | 76 |
| RG-T-2551L48AA |
230.4 | 5240 | 48 | 68 | 96 | 152 |
