RG-T-3257S Tubular Solenoid

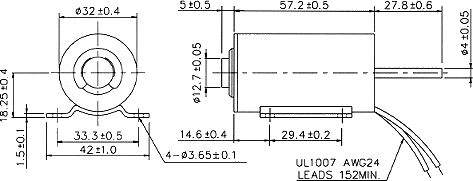

Size(mm)L x Dia. 57.2 x Ø32.0
Item No/Type: RG-T-3257S
Plunger Weight: 70g / Total Weight: 295g
Description
Shown Energized UNIT: mm
STROKE Vs FORCE
STROKE Vs RESPONSE TIME
AMPERE-TURNS Vs FORCE
COIL DATA
Heat Sink: 130 x 130 x 3mm(aluminum)
Duty cycle(%)=
X 100%
|
Continuous(100%)
|
Or less(50%)
|
Or less(25%)
|
Or less(10%)
|
| MAX. "on" time in seconds |
∞
|
390 | 60 | 18 |
| Watts at 20°C |
13 | 26 | 52 | 130 |
| Ampere-turns at 20°C |
1500 | 2121 | 3000 | 4743 |
|
Type no.
|
Resistance (20°C)
Ω ±10% |
No. turns |
Volts DC
|
|||
| RG-T-3257S06AA |
2.77 | 692 | 6 | 8.5 | 12 | 19 |
| RG-T-3257S12AA |
11.07 | 1385 | 12 | 17 | 24 | 38 |
| RG-T-3257S24AA |
44.3 | 2768 | 24 | 34 | 48 | 76 |
| RG-T-3257S48AA |
177.2 | 5535 | 48 | 68 | 96 | 152 |
