RG-T-3864S Tubular Solenoid

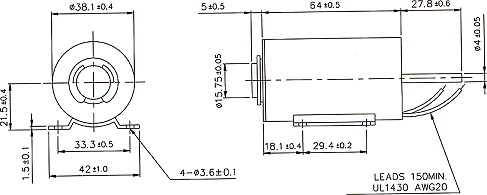

Size(mm)L x Dia. 64.0 x Ø38.1
Item No/Type: RG-T-3864S
Plunger Weight: 95g / Total Weight: 497g
Description
Shown Energized UNIT: mm
STROKE Vs FORCE
STROKE Vs RESPONSE TIME
AMPERE-TURNS Vs FORCE
COIL DATA
Heat Sink: 150 x 150 x 3mm(aluminum)
Duty cycle(%)=
X 100%
|
Continuous(100%)
|
Or less(50%)
|
Or less(25%)
|
Or less(10%)
|
| MAX. "on" time in seconds |
∞
|
420 | 100 | 25 |
| Watts at 20°C |
17 | 34 | 68 | 170 |
| Ampere-turns at 20°C |
1800 | 2546 | 3600 | 5692 |
|
Type no.
|
Resistance (20°C)
Ω ±10% |
No. turns |
Volts DC
|
|||
| RG-T-3864S06AA |
2.1 | 630 | 6 | 8.5 | 12 | 19 |
| RG-T-3864S12AA |
8.5 | 1275 | 12 | 17 | 24 | 38 |
| RG-T-3864S24AA |
34 | 2550 | 24 | 34 | 48 | 76 |
| RG-T-3864S48AA |
136 | 5535 | 48 | 68 | 96 | 152 |
