RG-RT-4025 Rotary Solenoid

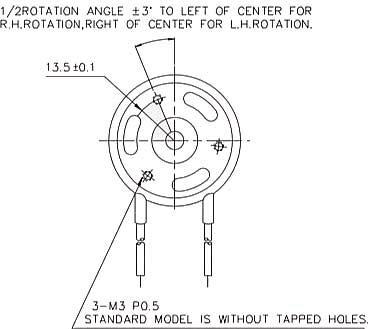

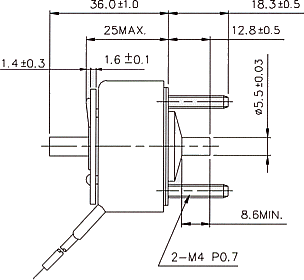

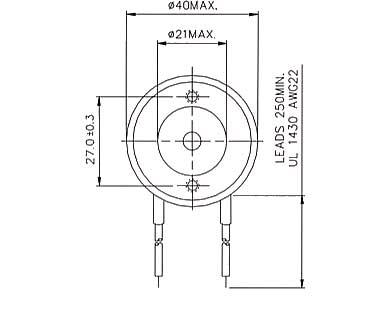

Description

COIL DATA

Heat Sink: 160 x 160 x 3mm (aluminum) Return spring torque: 0.0165~0.024 N.m

Duty cycle(%)=     X 100%	Continuous(100%)	Or less(75%)	Or less(50%)	Or less(25%)	Or less(10%)
MAX. "on" time in seconds	∞	108	100	36	9
Watts at 20°C	12.5	16.5	25	50	125

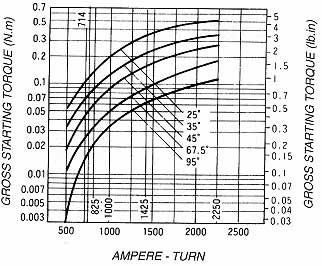

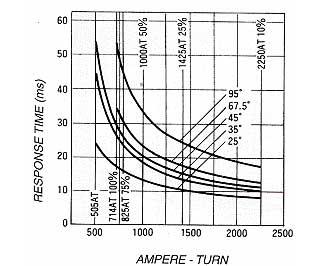

Ampere-turns at 20°C	714	825	1000	1425	2250

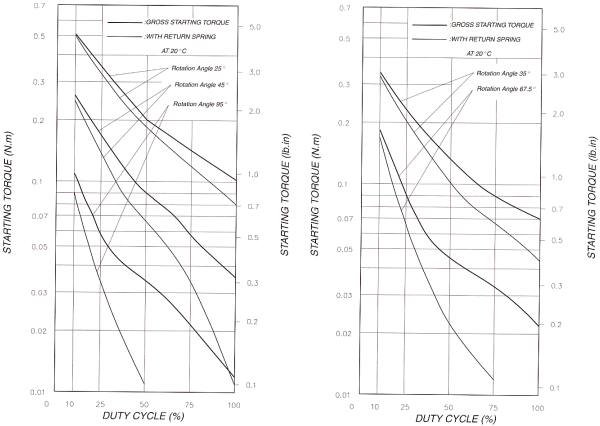

Gross starting torque at 20°C (N.m) A:25°	0.104	0.138	0.195	0.355	0.52
Gross starting torque at 20°C (N.m) B:35°	0.069	0.092	0.127	0.23	0.355
Gross starting torque at 20°C (N.m) C:45°	0.035	0.058	0.092	0.16	0.276
Gross starting torque at 20°C (N.m) D:67.5°	0.022	0.035	0.046	0.092	0.185
Gross starting torque at 20°C (N.m) E:95°	0.012	0.022	0.035	0.058	0.115
